Description
Frame sizes

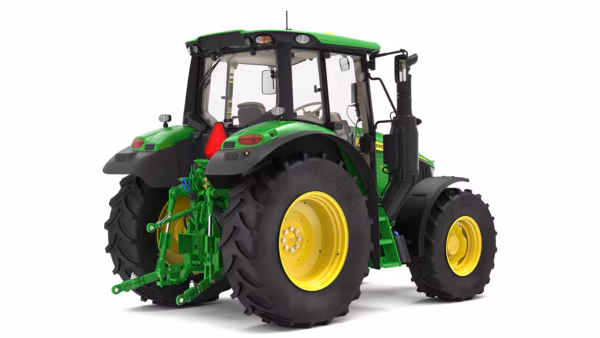

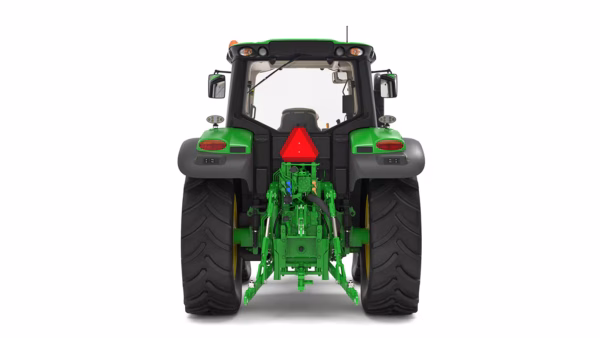

Looking for a reliable all-around tractor to support a variety of applications? The 6M offers a portfolio of 18 models with 5 frame sizes (2400mm to 2900mm) to optimize your operation. Whether you need a nimble tractor for loader work or a row crop tractor with dual tires, the 6M is up to any task. The broad offering of optional transmissions, hydraulics, rear axles, and tires allows the operator to customize to meet the unique challenges of any operation.

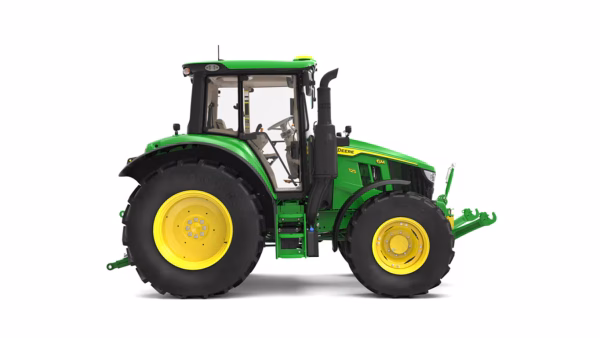

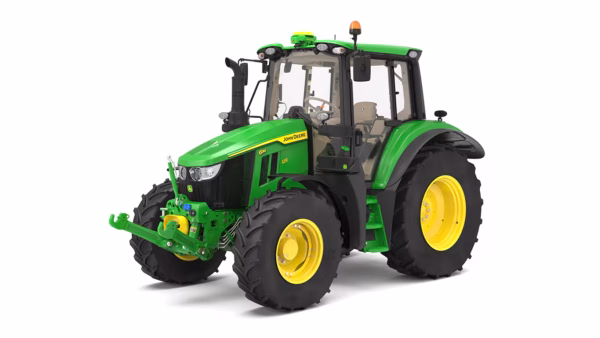

The 6M Tractor was designed to ensure maximum maneuverability and visibility, no matter the job. The sloped hood design on the 2400mm wheelbase cab models delivers superior visibility to the front loader or front-mounted attachments. Operators can easily see the front mounted loader attachments (buckets, pallet forks, bale spears, etc.) to ensure proper alignment for attaching and detaching.
When you work in small spaces, a short wheelbase is critical in providing the tight turning radius needed to maneuver. The 6M features a 17.8-cm (7-in.) shorter wheelbase (240 cm [94.5 in.]) on four tractors ranging from 95 to 125 engine horsepower. Take advantage of a 4.3-m (14-ft) turning radius, perfect for cleaning out barns, working livestock, baling hay, roadside mowing applications, and more.
| Engine description | John Deere PowerTech™ EWL | |||
|---|---|---|---|---|
| Engine displacement | 4.5 L 275 cu in. |
|||
| Rated engine power | 125 hp 92 kW |
|||
| Maximum engine power | 138 hp 101 kW |
|||
| Rated PTO power (hp SAE) | 97 hp 73 kW |
|||
| Maximum PTO power | At 1000 PTO rpm with IPM: 79 kW 106 hp |
|||
| Transmission type | Standard: John Deere 24-speed PowrQuad Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 24-speed AutoQuad Plus 40 km/h & 50 km/h John Deere 24-speed CommandQuad Plus 40 km/h & 50 km/h AutoPowr™/IVT™ 40 km/h & 50 km/h Creeper available: PowrQuad Plus and AutoQuad Plus |
|||
| Hydraulic pump rated output | Standard: 35-cc pump: 80 L/min 21 gpm Optional: 45-cc pump: 114 L/min 30 gpm |
|||
| Rear hitch category (SAE designation) | 2/3N | |||
| Base machine weight | 6250 kg 13,779 lb |
| Description | John Deere PowerTech™ EWL | |||
|---|---|---|---|---|
| Engine type | 4045HL290 | |||
| Rated speed | 2100 rpm | |||
| Aspiration | Single turbocharger with wastegate | |||
| Emission level | Final Tier 4 | |||
| After treatment type | Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using diesel exhaust fluid (DEF) | |||
| Displacement | 4.5 L 275 cu in. |
| Rated power | 125 hp 92 kW |
|||
|---|---|---|---|---|
| Rated PTO power (hp SAE) | 97 hp 73 kW |
|||
| Maximum PTO power | At 1000 PTO rpm with IPM: 86 kW 116 hp |
|||
| Intelligent Power Management (IPM) | Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 14.9 kW 20 hp |
|||
| Power boost | 10 percent | |||
| Maximum engine power | 138 hp 101 kW |
|||
| Engine peak torque | 585 Nm | |||
| PTO torque rise | 40 percent |
| Type | Standard: John Deere 24-speed PowrQuad Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 24-speed AutoQuad Plus 40 km/h & 50 km/h John Deere 24-speed CommandQuad Plus 40 km/h & 50 km/h AutoPowr™/IVT™ 40 km/h & 50 km/h Creeper available: PowrQuad Plus and AutoQuad Plus |
|||
|---|---|---|---|---|
| Reverser | Electronic left-hand reverser | |||
| Creeper | Optional |
| Type | Standard: Pressure compensated (PC) Optional: Pressure-and-flow compensated (PFC) system with Load Sensing function |
|||
|---|---|---|---|---|
| Pump rated output | Standard: 35-cc pump: 80 L/min 21 gpm Optional: 45-cc pump: 114 L/min 30 gpm |
|||
| Number of rear selective control valves (SCVs) | Standard: Two ISO couplers Optional: Two to four ISO couplers |
|||
| Number of mid selective control valves (SCVs) | Up to three | |||
| Joystick SCV control | Mechanical/electrical |
| Remote control valves available | Standard | |||
|---|---|---|---|---|
| Hitch category (SAE designation) | 2/3N | |||
| Rear hitch lift capacity (SAE designation) | Standard: Category 2/3N: 2750 kg 6057 lb Optional: Category 2/3N: 3600 kg 7930 lb |
|||
| Maximum lift capacity behind lift points | Standard: Category 2/3N: 4350 kg 9581 lb Optional: Category 2/3N: 5650 kg 12,445 lb |
|||
| Sensing type | Electronic at lower link | |||
| Rear axle differential lock | Electrohydraulically with oil-cooled clutch |
| Drawbar category | Category 2 | |||
|---|---|---|---|---|
| Maximum vertical load | 1200-2000 kg (2649-4409 lb) Maximum vertical load dependent on drawbar position |
| Type | Electrohydraulically operated, oil-cooled, multi-disc design | |||
|---|---|---|---|---|
| Engine rpm (at rated PTO speeds) | 540 PTO: 1977 rpm 1000 PTO: 1972 rpm |
|||
| PTO actuation | In-cab switch and optional external fender-mounted remote control |
| Category | 3N | |||
|---|---|---|---|---|
| Electric power | Seven-pin electrical socket | |||
| Standard lift capacity | At hook ends: 3300 kg 7269 lb |
|||
| Front power take-off (PTO) | Electrohydraulically engaged with oil-cooled, multi-disc design | |||
| PTO speed | 1000 PTO: 1969 rpm |
| Type | Standard: flange-type rear axle Optional: Rack-and-pinion rear axle – 79-mm (3.1-in.) shaft (2550-mm/100.4 in.) Rack-and-pinion rear axle – 79-mm (3.1-in.) shaft – short version (2286-mm/90.0 in.) mm mm Rack-and-pinion rear axle – 86-mm (3.39 in.) shaft (2438-mm/96.0 in.) |
|||
|---|---|---|---|---|
| Final drive type | Three planetary gear reduction | |||
| Rear differential lock | Electrohydraulically with oil-cooled clutch |
| Type | Standard: MFWD Optional: Two-wheel drive (2WD) Triple-Link Suspension (TLS) MFWD axle (hydro-pneumatic, permanently active, triple link, self-leveling suspension with 100-mm [3.9-in.] suspension range) Triple-Link Suspension MFWD with brakes |
|||
|---|---|---|---|---|
| Front axle differential lock | Self-locking differential |
| Front | 380/85R24 | |||
|---|---|---|---|---|
| Rear | 460/85R34 |
| Type | Dynamic load sensing, hydrostatic, flow metering |
|---|
| Alternator size | Standard: 14 V/125 amp Optional: 14 V/250 amp |
|||
|---|---|---|---|---|
| Battery options | Standard: 12 V/154 amp-hr Optional: 12 V/174 amp-hr |
| Rollover protective structure, OOS | Gearshift location – console/floor Console |
|||
|---|---|---|---|---|
| Seat | Standard: Standard seat with air suspension Optional: Economy seat with mechanical suspension |
|||
| Cab suspension | Optional: Mechanical Cab Suspension (MCS) | |||
| Instructional seat | Optional | |||
| Display | Cornerpost display (right-hand A-post) Functionality: Performance monitor and individual settings |
|||
| Radio | Standard: Standard AM/FM stereo | |||
| Inner cab volume | 3.0 m3 105.9 cu ft |
|||
| dB(A) rating | 70 dBA | |||
| Cab glass area | 4.85 m2 |
| Wheelbase | 2400 mm 94.5 in. |
|||
|---|---|---|---|---|
| Overall width | 2460 mm 96.8 in. (380/85R24 & 460/85R34) |
|||
| Overall length | 4290 mm 168.9 in. (inc. weight bracket) |
|||
| Overall height | 2800 mm 110.2 in. (380/85R24 & 460/85R34) |
|||
| Front axle center | 462 mm 18.2 in. (ground clearance) |
|||
| Approximate shipping weight, Open;Cab | Cab: 5900 kg 13,007 lb |
| Base machine weight | Front axle 2500 kg 5512 lb Rear axle 3750 kg 8267 lb 6250 kg 13,779 lb |
|||
|---|---|---|---|---|
| Maximum permissible weight | 9500 kg 20,944 lb |
| Crankcase oil volume | 17 L 4.5 U.S. gal. |
|||
|---|---|---|---|---|
| Fuel tank | 175 L 46.2 U.S. gal. |
|||
| Diesel exhaust fluid (DEF) tank | 19 L 5.0 U.S. gal. |
|||
| Cooling system | 20 L 5.3 U.S. gal. |
|||
| Transmission-hydraulic system | PowrQuad Plus/AutoQuad Plus/CommandQuad Plus: 53 L 14.0 U.S. gal. AutoPowr/IVT: 60.0 L 15.9 U.S. gal. |
| Interval for engine oil change | 500 hours | |||
|---|---|---|---|---|
| Interval for hydraulic/transmission oil change | 1500 hours | |||
| Interval for engine coolant change | 6000 hours |
| Loader | 600R | |||
|---|---|---|---|---|
| Lift capacity at full height | MSL: 1899 kg 4187 lb NSL: 2338 kg 5155 lb |
|||
| Maximum lift height | MSL: 3.9 m 156.1 in. NSL: 3.9 m 155.8 in. |
| Guidance | Optional: AutoTrac™ with Universal Display | |||
|---|---|---|---|---|
| Telematic | Standard: JDLink™ | |||
| Remote diagnostics | Standard: JDLink™ |
| Country of manufacture | Germany |
|---|
