Description
Model NO.: Xs303s
Type: Road Roller
Working Method: Vibration
Axle: Uniaxial Monowheel
Grinding Wheel Type: Light Grind
Travel Speed: 0-10km/H
Centrifugal Force: 390/520kn
Certification: CE
Condition: New
Transport Package: Nude Package
Specification: 6690*2480*3330mm
Trademark: China Top 1 Brand
Origin: Xuzhou, Jiangsu, China
HS Code: 84294019
Production Capacity: 1000 Units/Month

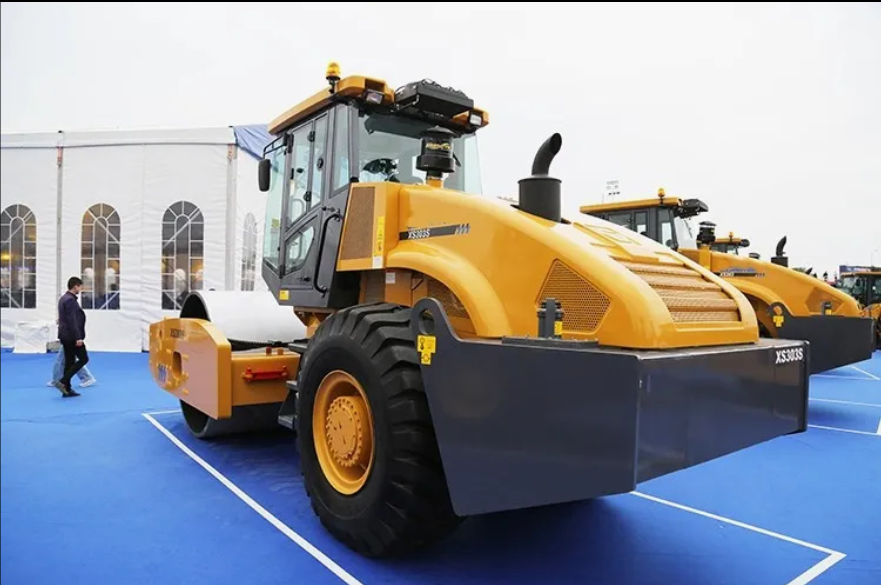

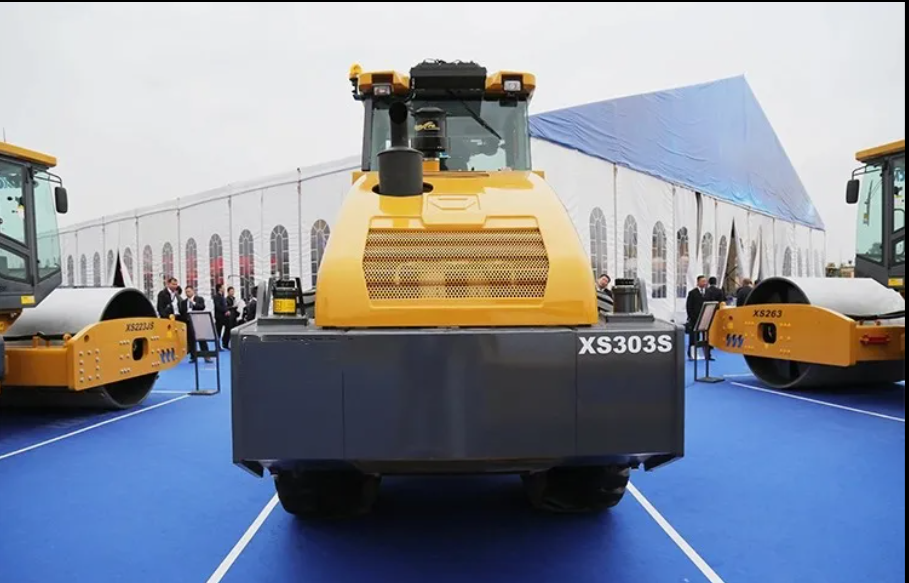

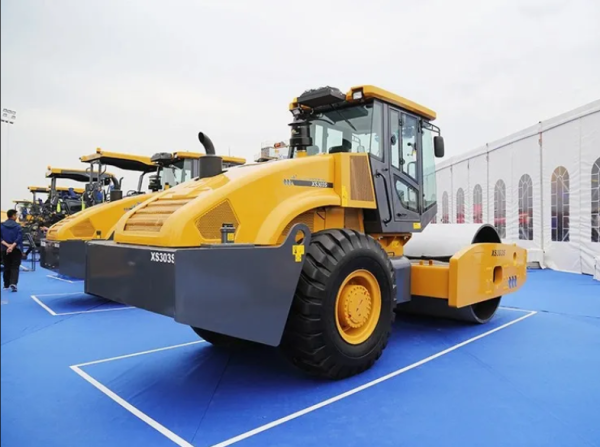

XS303S 30 ton compactor machine single drum vibratory new road roller
XS303S series full hydraulic single-wheel vibratory roller adopts maintenance-free screening anti-blocking technology,
flexible sealing technology and diversion sealing heat dissipation technology to meet the continuous and stable working
requirements in high temperature and plateau environment.
flexible sealing technology and diversion sealing heat dissipation technology to meet the continuous and stable working
requirements in high temperature and plateau environment.
|
Operating weight
|
kg
|
30000
|
|
Load applied on front drum
|
kg
|
18000
|
|
Engine rated power
|
kW
|
192
|
|
Engine rated speed
|
r/min
|
2200
|
|
Static linear load
|
N/cm
|
845
|
|
Nominal amplitude (high/low)
|
mm
|
1.0/2.0
|
|
Vibration frequency(high/low)
|
Hz
|
33/27
|
|
Exiting force (high/low)
|
kN
|
390/520
|
|
Speed(I/II/III/IV)
|
km/h
|
0-3.8/0-5.6/0-5.6/0-10.6
|
|
Theoretical gradeability
|
%
|
40
|
|
Min. outer turning radius
|
mm
|
7020
|
|
Swing angle
|
°
|
±10
|
|
Steering angle
|
°
|
±33
|
|
Dimension(L*W*H)
|
mm
|
6057×2520×3330
|
|
Wheelbase
|
mm
|
3510
|
