Description
Model NO.: 1BZM-8.0
Application Field: Agriculture
Farming Policy: Dry Cultivating Machinery
Power Source: Tractor
Operation: Soil Preparation Machinery, Continuous Running Operation
Traction Type: Traction
Drive Type: Chain Drive
Arbor Configuration: Horizontal Axis
Certification: THIS
Color: Blue
Warranty: 1year
Product Name: 1bzm-8.0 Speed Tiller
Working Width: 8.0m
Disc Diameter: 24/26inch
Disc Number: 56pieces
Matched Power: 400-450HP
Usage: Tillage
Transport Width: 2900mm
Transport Package: Nude Packig in Standard 20 Feet Container
Trademark: to be ugly
Origin: Xuzhou
HS Code: 8432210000
Production Capacity: 1000set
Zhongyang compact disc harrow 1BC-5.5Trailing & Folding Speed Discs, extra and quick stubble cultivation.
Operating Width -8m
Transport Width – 2.9m
Transport Height – 3.9m
Tractor Power – 400hp to 450hp
Number of Discs – 60
Disc Size – 610 mm (24 inch/26inch) x 6 mm
Weight – 4650-4800kg
Drawbar – Trailing A-frame
Operating Speed – 8 to 16 kph
Wheels – 2 x 400/60-15.5 and 2

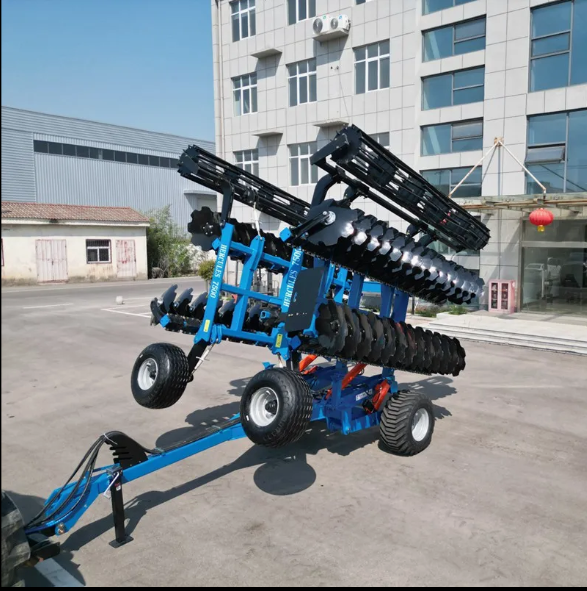

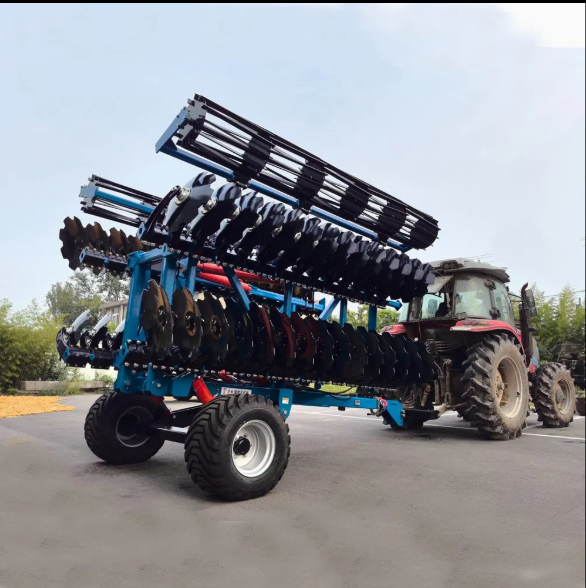

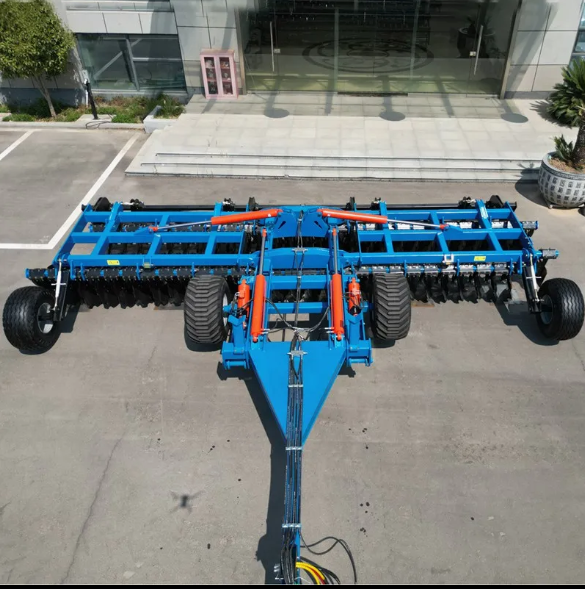

The Zhongyang SupaTill 1BZM-5.0 trailing & folding speed disc feature’s heavy duty, square tube steel frame.
Large machine suited for broadacre applications where covering large areas in a timely manner are critical. Features hydraulic depth control for easy adjustment and is heavy enough to penetrate hard soils and provide a uniform seed bed and is versatile enough for both primary and secondary cultivation purposes.
Disc gang’s have lateral adjustment to vary opposing gang’s position.
Discs are Quality abrasion resistant 610 /660mm (24/26inch) x 6mm.
Individual Disc Arm assemblies at 250mm spacings, feature high quality LYC, maintenance free, double taper roller bearings.
Disc Arm clamps feature rubber dampers for a cushioned movement of the arm to prevent damage to the disc or arm during operation.
Two sets of crumble rollers are fitted covering full machine width, preventing furrows, leaving a prime bed for optimum seeding and crop germination conditions.
There is optional rubber rollers available. The high friction main Pivot Points for the Wheel Arm and Crumble Roller assemblies are protected via a specially formulated high viscosity thermoplastic nylon bushing for maintenance free, long life and wear resistance.
This range of equipment comes in widths from 4.0m up to 8m.
These machines offer unbeatable value for money when considering, purchase price point, quality, ground covered per day, fuel savings, operator cost and machine hour savings. If not held in stock there will be an 8 to 12 week lead time from our factory. 12 months Warranty from date of purchase.
